LEWA triplex®
Compact, rugged, reliable.
Whether in the oil and gas industry, the chemical industry, the food industry or the energy sector, the LEWA triplex diaphragm process pump has been used everywhere in high-pressure applications.
The pump features tried-and-tested, patented LEWA diaphragm technology, absolutely secure and reliable operation and the world’s most compact design for a process pump. It also has the advantages of a long service life, minimal life cycle costs and high energy efficiency.
It is available in six different sizes, this allows its use in a wide assortment of processes and applications and lets it fulfill a wide range of requirements.
Good reasons for a LEWA triplex®
The LEWA triplex is a hydraulically actuated diaphragm process pump with a compact design that offers numerous advantages in relation to comparable pumps during high-pressure processes.
Solid, compact design
The LEWA triplex features a solid, durable and long-lasting overall design resulting from a one-piece crankcase and double bearing crankshaft. The space-saving monoblock design makes the triplex the world’s most compact process pump. This also makes it ideal for applications and processes with little installation space, such as oil drilling platforms.
Low-pulsation flow rate
The triplex series features very smooth running and a low-pulsation flow rate. The even phasing of pistons (eccentric offset) makes this possible. This means there is usually no need to install pulsation dampers in the pipeline system.
Unique suction capacity
The unique suction capacity of the LEWA triplex diaphragm process pump distinguishes it from other pumps. With an absolute suction pressure of up to 0.1 bar, it provides more than just a wide array of safe installation options. The operating costs for the entire system can also be decreased compared to other pumps.
Absolutely safe and reliable startup
Starting up the process pump is safe, reliable and easy: When not operating, a spring fixes the diaphragm in a neutral position at all times. This ensures that the diaphragm is never damaged due to incorrect positioning when starting up.
Safety and reliability in extreme operating states
For us, safety and reliability come first: The pump is not subjected to damage, even after operating errors occur or in extreme operating states. We offer maximum protection for user and machine through built-in safety mechanisms—not only when excess primary pressure is present, but also when the pressure or suction line is closed.
Suitable for virtually all fluids
The ecoflow series is suitable for almost all liquids thanks to its flexible design. Whether they are dangerous, toxic, abrasive, viscous, environmentally harmful or sensitive fluids, the user-specific configuration always gives you the correct diaphragm process pump.
Patented sandwich diaphragm
Our patented sandwich diaphragm is not just extremely durable, it is also well-protected. The LEWA DPS diaphragm protection system and diaphragm monitoring system report any damage to the diaphragm before it tears and has a chance to contaminate the pumped fluid.
Integrated pressure relief valve
A pressure relief valve in the hydraulic part of the diaphragm pump prevents potential overload situations during operation. This valve is individually adjustable and can therefore be adapted to different operating situations.
Vertical flange motor
Our triplex pumps up to the G3R size feature an integrated reduction gear unit and a vertically attached flange motor to save space.
API 675 standard
The triplex series fulfills the internationally valid quality standard of the American Petroleum Institute API 675. In this standard, all requirements for a displacement pump in industrial settings are defined with respect to design, construction and performance.
Low maintenance costs and a long service life
Our pumps feature extremely low maintenance costs and a long service life. If regular maintenance intervals are maintained, our diaphragm pumps can operate up to 40 years.
High energy efficiency
LEWA process pumps achieve the highest efficiency of all pump technologies. Our triplex series also combines high efficiency with low energy consumption.
Worldwide standards
We comply with globally applicable standards such as VDMA 24284 and 24286-10 when designing our pumps.
Hermetically sealed
Diaphragm pumps work without dynamic seals. This forms a hermetically sealed working area. No emissions escape to the outside, and contamination of the fluid is impossible.
LEWA Smart Monitoring
With digital pumps for more efficiency, system availability and profitability of the entire production.
LEWA Smart Monitoring is a monitoring system consisting of sensors, a programmable logic controller (PLC), an industrial PC (IPC) and data analysis for new and existing pumps. The system determines characteristic values and key performance indicators. There is no intervention in process control or direct contact between the sensor system and the conveyed fluid.
With key performance indicator-based condition monitoring, you detect and monitor operating statuses proactively. You can also optimize the overall output and robustness of your pump and pipe systems. This will increase the efficiency of your entire production plant. You can access the data conveniently via your corporate network. Or you use the LEWA cloud with extended analysis and service offers.
Learn more about LEWA Smart Monitoring
Options
Customized valves
LEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.
Diverse connection geometries
Our pumps are equipped with all common connection geometries such as DIN standard, BASF's high-pressure standard, American ANSI, JIS, or your individual requirements. Customized configurations are possible.
Integration into process control systems
The signal acquisition of process control systems is achieved analogously or digitally. Flow rate is adjusted via electric or pneumatic stroke adjustment, alternatively by motor drive (FU).
Diagnostic connection
Our pumps and systems have connections that facilitate the diagnosis of their performance. This is done by a service technician on site or via remote monitoring.
Heating and cooling jacket
With heating and cooling jackets, our pumps are suitable for almost any temperature and can convey fluids at low temperatures or extreme heat.
Integrated pressure relief valve
An integrated pressure relief valve prevents potential overload situations. The valve is individually adjustable and can be adapted to different operating situations.
Special design materials
If the process demands it, wetted parts such as pumps heads and valves will be made of special materials such as stainless steel 316/316L (1.4401/1.4404), Hastelloy or Duplex steel and PVC.
Sanitary & hygienic Design
LEWA pumps and systems in sanitary & hygienic design are available for applications that require extremely high purity, such as food production and the pharmaceutical industry.
CIP and SIP capability
Many LEWA pumps, systems and units can be cleaned (Cleaning in Place) and sterilized (Sterilization in Place). To carry this out, it is not necessary to disassemble the equipment.
Performance spectrum
With the combination of various pump heads and gear units, the LEWA triplex diaphragm process pump covers a wide performance spectrum. This allows us to provide you with a high-performance, energy-saving pump for any desired application.
Drive unit data
| Type | Stroke length [mm] | Plunger rod force [N] |
|---|---|---|
| G3S | 60 | 35000 |
| G3F | 90 | 45000 |
| G3G | 120 | 60000 |
| G3M | 120 | 125000 |
| G3R | 160 | 130000 |
| G3U | 210 | 190000 |
| G3T | 270 | 300000 |

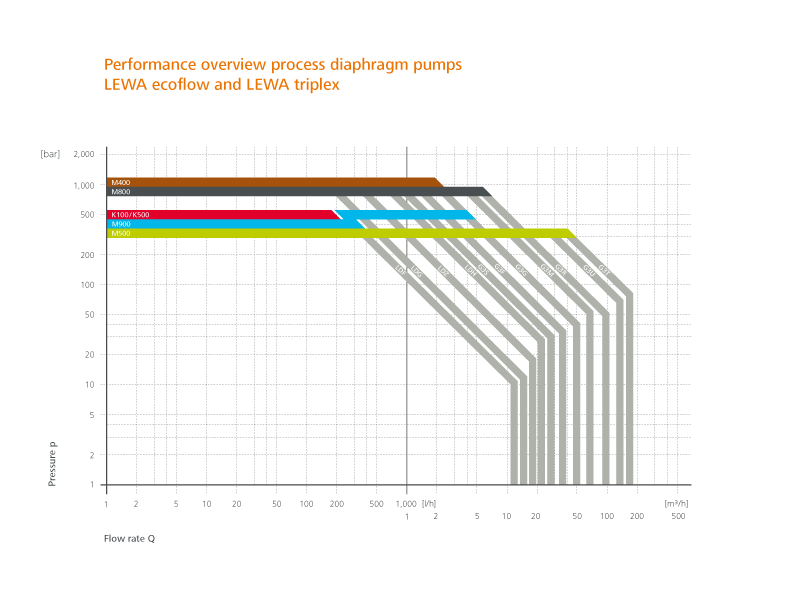

Performance overview
Installation dimensions
The space-saving monoblock design of our triplex pumps ensures maximum efficiency in the smallest space.
G3S, G3F, G3G, G3M, G3R installation dimensions
| Type | L [mm] | W [mm] | H [mm] |
|---|---|---|---|
| G3S | 1300 | 1150 | 1350 |
| G3F | 1550 | 1300 | 1850 |
| G3G | 2200 | 1750 | 1950 |
| G3M | 2300 | 1900 | 3150 |
| G3R | 2950 | 2050 | 3900 |
G3S, G3F, G3G, G3M, G3R installation dimensions

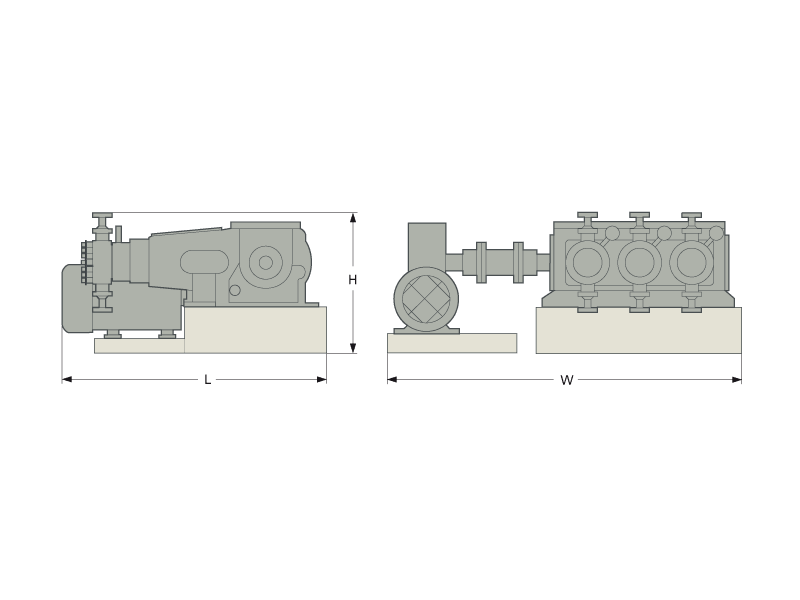

G3U, G3T installation dimensions
| Type | L [mm] | W [mm] | H [mm] |
|---|---|---|---|
| G3U | 3300 | 4450 | 1750 |
| G3T | 3600 | 4950 | 2200 |
G3U, G3T installation dimensions
Pump head variants
We provide various pump heads for different applications. Here, the spectrum ranges from all-purpose variants to special designs for high temperatures, pressures or aggressive fluids.
Pump head M900
State of the art universal diaphragm pump head with PTFE sandwich diaphragm for maximum operational safety. Robust and reliable with unmatched standard of protection against difficult start up, faulty operation and upset conditions. The patented DPS technology also enables a suction lift capability that is globally unique in the field of hydraulically actuated diaphragm pumps.
| Type | M900 |
| Pressure | 500 bar |
| Flow rate | 6 m³/h |
| Temperature | -20/+150 °C |
| Viscosity | 100.000 mPa∙s |
| Operational capability | Can be installed on all ecoflow diaphragm metering pumps |
Pump head M800
Universal diaphragm pump head with PTFE sandwich diaphragm for extreme pressures. The special geometry of the diaphragm clamping system enables the use of PTFE diaphragms in pressure ranges up to 1000 bar and thus results in a very compact shape. Very economical solution in the range of high pressures, especially in comparison to pump heads with metal diaphragms.
| Type | M800 |
| Pressure | 1.000 bar |
| Flow rate | 1,1 m³/h |
| Temperature | -10/+60 °C |
| Viscosity | 100.000 mPa∙s |
| Operational capability | Can be installed on all ecoflow process diaphragm pumps ≥ LDF. |
Pump head M500
Universal diaphragm pump head with PTFE sandwich diaphragm for high flow rates. Proven, durable, reliable and with diaphragm position control.
| Type | M500 |
| Pressure | 350 bar |
| Flow rate | 19 m³/h |
| Temperature | -50/+150 °C |
| Viscosity | 100.000 mPa∙s |
| Operational capability | Metal pump heads (316/316L): can be installed on all ecoflow drive units ≥ LDE Plastic pump heads (PVC/PVDF/PTFE): can be installed on all ecoflow drive units ≤ LDE |
Pump head M400
Proven pump head with metal diaphragm for extreme pressures and high temperatures. Also suitable when a high degree of permeation resistance is required. The diaphragm is working between two contour plates, limiting the deflection of the diaphragm and providing an extreme level of operational reliability. The diaphragm monitoring system offers a plus for safety by immediately displaying the damage of a diaphragm layer.
| Type | M400 |
| Pressure | 1.200 bar |
| Flow rate | 0,8 m³/h |
| Temperature | -40/+200 °C |
| Viscosity | 500 mPa∙s |
| Operational capability | Can be installed on all ecoflow process diaphragm pumps ≥ LDF. |
Special pump heads in remote head design
Some tasks in process engineering include the metering or circulation of media with critical properties like high temperature and high abrasivity. These critical conditions frequently need to be kept away from the displacer system of the metering pump, either to protect the system or its operating personnel. A normal metering pump is not suitable for such tasks due to its compact design.
| Type | MR / MV / KV |
| Pressure | 500 bar |
| Flow rate | 19 m³/h |
| Temperature | -70/+400 °C |
| Viscosity | 100.000 mPa∙s |
| Operational capability | Remote pump heads can be installed on all LEWA ecoflow metering and process pumps and on all LEWA triplex metering and process pumps. |
